When developing premium health supplements, formulation stability and manufacturing efficiency are the two pillars of commercial success. Active ingredients such as CoQ10, Resveratrol, Astaxanthin, Probiotics, and botanical extracts are notoriously sensitive to oxidation and moisture. At the same time, contract manufacturers (OEM/ODMs) often hesitate to run new plant-based capsules due to fears of brittleness, static, or unexpected machine downtime.
Can a single capsule shell solve both oxygen-sensitivity challenges in the lab and run smoothly on 7,000+ capsule/minute filling machines?
The answer lies in Pullulan capsules. This comprehensive guide dives deep into the physical barrier properties of pullulan and provides actionable engineering parameters for seamless high-speed encapsulation.
Part 1: The Ultimate Oxygen Barrier for Sensitive Formulations
Oxidation is the silent killer of supplement potency. When delicate active compounds react with atmospheric oxygen inside the capsule, they degrade, change color, lose bioactivity, and ultimately generate rancid odors that trigger customer returns.

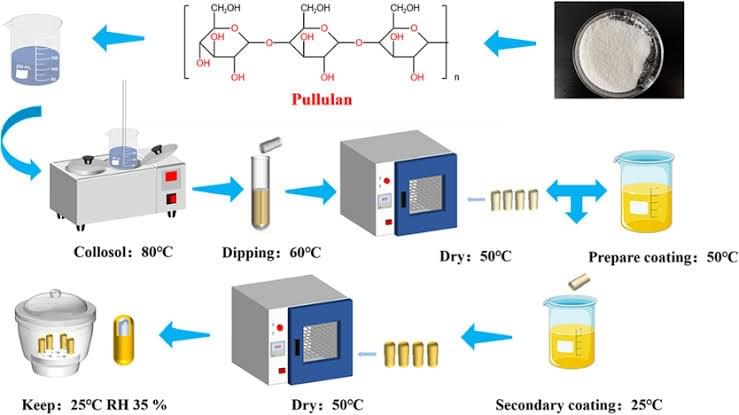

While standard HPMC capsules offer low moisture content, their film structure is relatively porous to atmospheric gases. Pullulan, a naturally fermented polysaccharide, forms an exceptionally dense polymer network.
| Physical & Performance Metric | Gelatin Capsules | HPMC Capsules | Pullulan Capsules |
|---|---|---|---|
| Oxygen Permeability (cm³/m²·day·atm) | ~ 2.5 | ~ 80.0 | ~ 0.3 (300x lower than HPMC) |
| Moisture Content (%) | 13.0% – 16.0% | 4.0% – 7.0% | 10.0% – 13.0% |
| Visual Clarity & Polish | High Transparency | Translucent / Matte | Crystal Clear (Glass-like) |
| Odor & Flavor Masking | Moderate | Low | Superior Air-tight Lock |
| Disintegration Time (USP) | < 15 mins | < 15 mins | < 10 mins (Rapid Release) |
Ingredient Stability Performance
By minimizing oxygen ingress, pullulan capsules preserve active pharmaceutical and nutraceutical ingredients far beyond the capabilities of conventional polymer shells.
| Sensitive Active Ingredient | Primary Degradation Factor | Standard HPMC Retained Potency (12 Mos) | EEK Pullulan Retained Potency (12 Mos) |
|---|---|---|---|
| Coenzyme Q10 (Ubiquinol) | Oxidative discoloration & potency loss | 72.4% | 96.8% (Near zero oxidation) |
| Resveratrol & Pterostilbene | Atmospheric oxygen degradation | 68.1% | 95.2% |
| Probiotics (Live Strain CFU) | Oxygen exposure & humidity interaction | 45.0% CFU loss | < 12.0% CFU loss |
| Herbal Extracts (Valerian/Garlic) | Odor leakage & cross-contamination | High Odor Permeation | Zero Odor Permeation |
Key Formulation Benefits:
- Eliminate Artificial Preservatives: By lowering the oxygen transmission rate (OTR) to near-zero ($0.3$), pullulan acts as a natural protective shield, allowing you to remove synthetic antioxidants or nitrogen-flushing steps from your production line.
- Lock in Pungent Odors: Herbal extracts like garlic, valerian root, or SAMe can emit strong odors. Pullulan’s tight molecular structure traps unpleasant aromas inside the shell, dramatically improving consumer compliance.
- Preserve Visual Appeal: High-clarity pullulan capsules provide a crystal-clear window to display premium golden oils or fine botanical powders without yellowing over time.

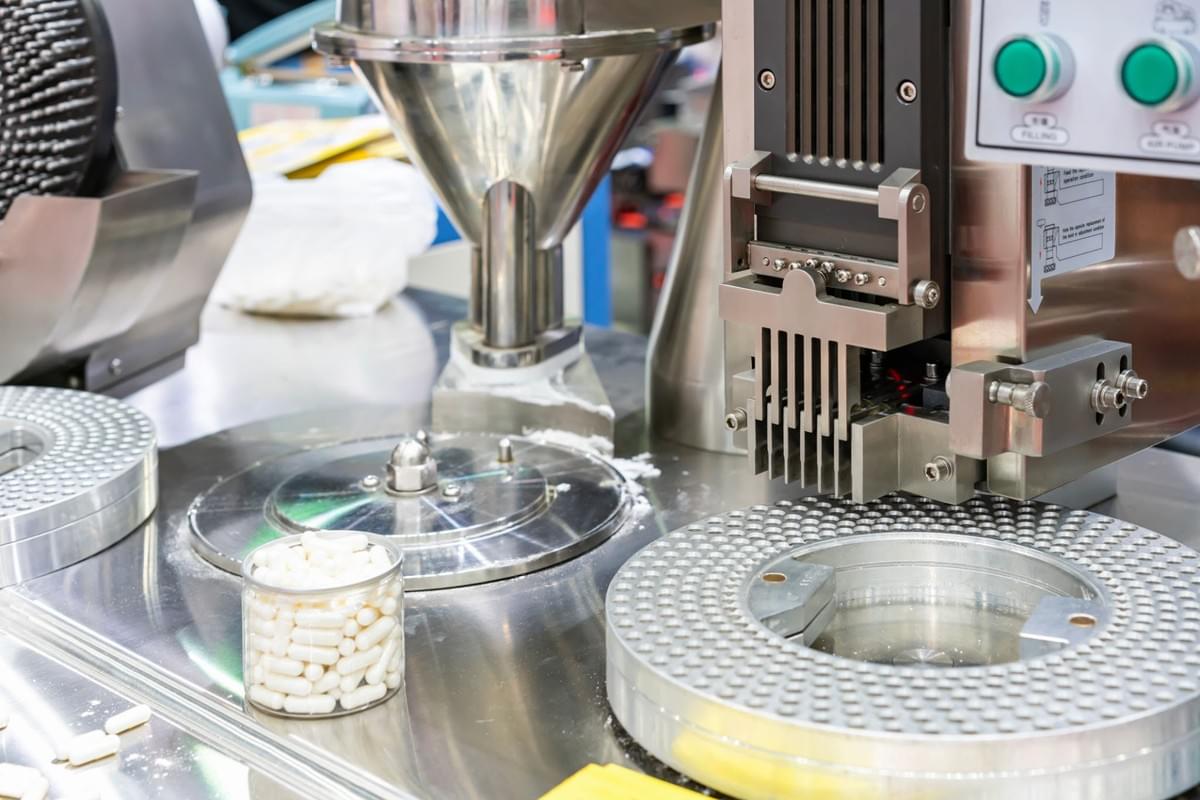

Part 2: High-Speed Encapsulation & OEM Machine Performance
Formulation superiority means nothing if capsules jam, split, or deform during mass production. Contract manufacturers often worry about the brittleness or static sensitivity of plant-based shells.
EEK engineers have optimized our Pullulan capsule shells specifically for high-speed automatic filling equipment (e.g., Bosch, IMA, MG2). Here is how to achieve a >99.5% filling efficiency rate:
| Operational Parameter | Recommended Target Range | Engineering Notes for Line Operators |
|---|---|---|
| Cleanroom Temperature | 18°C – 25°C (64°F – 77°F) | Prevents thermal deformation during high-speed sorting. |
| Relative Humidity (RH) | 35% – 55% | Maintains critical 10%-13% equilibrium moisture content. |
| Machine Speed Limit | Up to 7,200 capsules/min | Flawless performance on Bosch, IMA, & MG2 fully automatic machines. |
| Target Filling Yield Rate | > 99.5% Efficiency | Minimizes telescoping, brittle cracking, and vacuum faults. |
Key Operational Parameters:
- Moisture Balance & Environmental Control: Pullulan capsules maintain an optimal equilibrium moisture content of 10%–13%. To prevent shells from losing moisture and becoming brittle, keep cleanroom relative humidity at 35%–55%.
- Dosing Disk & Tamping Pin Adjustments: Ensure segment orientation and collet alignment are perfectly centered to avoid telescoping upon joining. Maintain standard clearance between tamping pins and dosing disk to prevent over-compacting cohesive powders.
- Rapid Disintegration Consistency: In vivo and USP disintegration tests show that EEK Pullulan capsules dissolve completely in simulated gastric fluid within 8 to 12 minutes, releasing active ingredients rapidly without sticky gel formation.
Global Reliability: Local Warehousing & DDP Door-to-Door Supply Chain
For contract manufacturers running tight production schedules, running out of specialized pullulan capsules can halt entire manufacturing lines.
EEK removes international procurement risks through an integrated global supply chain:
- Local Stocking in North America & Australia: We maintain full size-and-color inventories (#00, #0, #1, #2) in strategic regional warehouses across North America and Australia for rapid local dispatch.
- Global DDP Door-to-Door Delivery: EEK manages double customs clearance, import tariffs, duties, and door-to-door delivery (Delivered Duty Paid). Your factory receives ready-to-fill capsules directly with zero logistical headache.
Elevate Your Supplement Manufacturing with EEK
Whether you are formulating a sensitive antioxidant complex or seeking to optimize machine throughput for high-end OEM clients, EEK Pullulan capsules deliver the ultimate synthesis of physical protection and operational excellence.
Looking to run trial batches or validate machine compatibility?
Contact the EEK engineering team today to request free sample lots, machine setup parameters, and complete technical specifications.
